Fe-Fe3C T-T-T Diagram - Metallurgy for Dummies Fe-Fe3C T-T-T Diagram Fe-Fe 3 C T-T-T Diagram, Adapted from Callister pg. 295, Fig. 10.6 The time-temperature transformation curves correspond to the start and finish of transformations which extend into the range of temperatures where austenite transforms to pearlite. Above 550 C, austenite transforms completely to pearlite. The Iron-Carbon Phase Diagram - IspatGuru It forms a solid solution with alpha (alpha ferrite), gamma (austenite), and delta (delta ferrite) phases of iron. These are important phases in Fe - Fe3C phase diagram. Between the single-phase fields, there are found regions with mixtures of two phases, such as ferrite and cementite, austenite and cementite, and ferrite and austenite.

Iron Carbide (Fe3c) - an overview | ScienceDirect Topics Iron carbide (Fe 3 C) is often labeled as the uncorroded portion of the steel. It is primarily associated with mild steels having a high carbon content and a ferritic-pearlitic microstructure. During corrosion of such steel, the ferrite phase dissolves and a porous iron carbide network is exposed (see Fig. 7.6).Given that iron carbide is an electronic conductor, this porous network serves as ...

Fe fe3c phase diagram

Draw Fe Fe3C diagram and explain Euctetoid, Eutectic and ... Cementiteor iron carbide is very hard, brittle intermetallic compound of iron & carbon, as Fe3C, contains 6.67 % C. It is the hardest structure that appears on the diagram, exact melting point unknown. Its crystal structure is orthorhombic. It is has low tensile strength (approx. 5,000 psi), but high compressive strength. PDF APPLICATIONS OF Fe-C PHASE DIAGRAM PHASE TRANSFORMATION Liquid to Austenite •Eutectic transformation-1148C, •C-2.11%-4.3% •Eutectic transformation-4.3% C, 1148C •Eutectic transformation L-γ+F Fe-C diagram - SlideShare Phase Mixtures Observed in Fe-C Diagram • 1. Pearlite The pearlite consists of alternate layers of ferrite and cementite. It has properties somewhere between ferrite and cementite. The average carbon content in pearlite is 0.76% • 2. Ledeburite Ledeburite is an eutetcic mixture of austenite and cementite in the form of alternate layers.

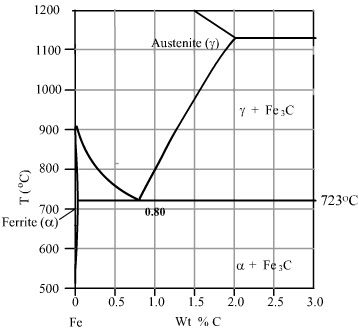

Fe fe3c phase diagram. The Iron Carbide (Fe Fe3C) Phase Diagram - UPRM Pages 1-50 ... Bainite - another product of austenite transformation• Needles or plates - needles of ferrite separated by elongated particles of the Fe3C phase• Bainite forms as shown on the T-T-T diagram at temperatures below those where pearlite forms• Pearlite forms - 540 to 727 0C• Bainite forms - 215 to 540 0C (PDF) Fe-C Phase Diagram | Bogdan Chiriac - Academia.edu • On the right the phase diagram only extends to 6.70 wt%C • At this concentration the intermediate compound iron carbide, or cementite (Fe3C) is formed • This is sufficient to describe all of the Fe3C steels and cast irons Pure Fe cementite used today. Fe-Fe3C binary phase diagram in high magnetic fields ... The Fe-Fe 3 C binary phase diagram under high magnetic fields up to 21 T was investigated by a differential thermal analysis. Applying a magnetic field of 18 T, the α-γ transformation temperature T α-γ for pure iron increased quadratically from 1181 K (a zero field) to 1206 K. With increasing magnetic field strength, the transformation temperature A c1 (α-Fe + cementite → α-Fe + γ ... Muddiest Point- Phase Diagrams III: Fe-Fe3C Phase Diagram ... This is part three in a series of screencasts about phase diagrams. This video introduces major features of the Fe-Fe3C phase diagram, steel classification, ...

phase diagram iron carbon - Metallurgy for Dummies The steel portion of the metastable Fe-C phase diagram can be subdivided into three regions: hypoeutectoid (0 < wt. % C < 0.68 wt. %), eutectoid (C = 0.68 wt. %), and hypereutectoid (0.68 < wt. % C < 2.08 wt. %). A very important phase change in the metastable Fe-C phase diagram occurs at 0.68 wt. % C. Iron-Carbon Equilibrium Diagram | Metallurgy Cementite, chemical formula Fe3C has a fixed carbon content of 6.67%, i.e., when iron has 6.67% carbon, then 100% cementite is obtained. Thus, this diagram (see bottom most horizontal line in (Fig. 1.22) which has components iron and cementite (100% Fe on one end to 100% cementite on the other end of the diagram) can rightly be called as iron-cementite diagram. PDF Fe-C Diagram - Eastern Mediterranean University Fe-C Diagram Fe-Carbon Diagram δ-ferrite -Solid solution of carbon in iron. Maximum concentration of carbon in δ- ferrite is 0.09% at 2719 ºF (1493ºC) -temperature of the peritectic transformation. The crystal structure of δ-ferrite is BCC (cubic body centered). L + Fe 3 C 2.06 4.30 6.70 M N C P E O G F H Cementite Fe 3 C x x' 0.025 0.83 PDF Iron-Iron carbide (Fe-Fe C) Phase Equilibrium Diagram In this diagram weight % C is plotted along horizontal axis and temperature along vertical axis. The diagram shows the phases present at various temperatures for very slowly cooled Fe-C alloys with carbon content up to 6.67%. Information given by the diagram: 1. Solid phases in the phase diagram 2. Invariant reactions in the phase diagram 3.

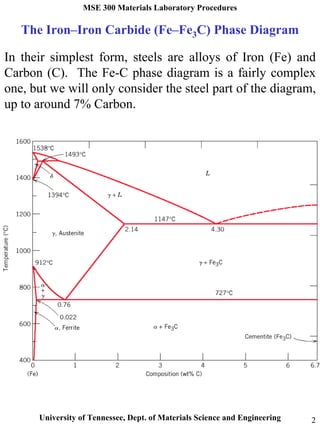

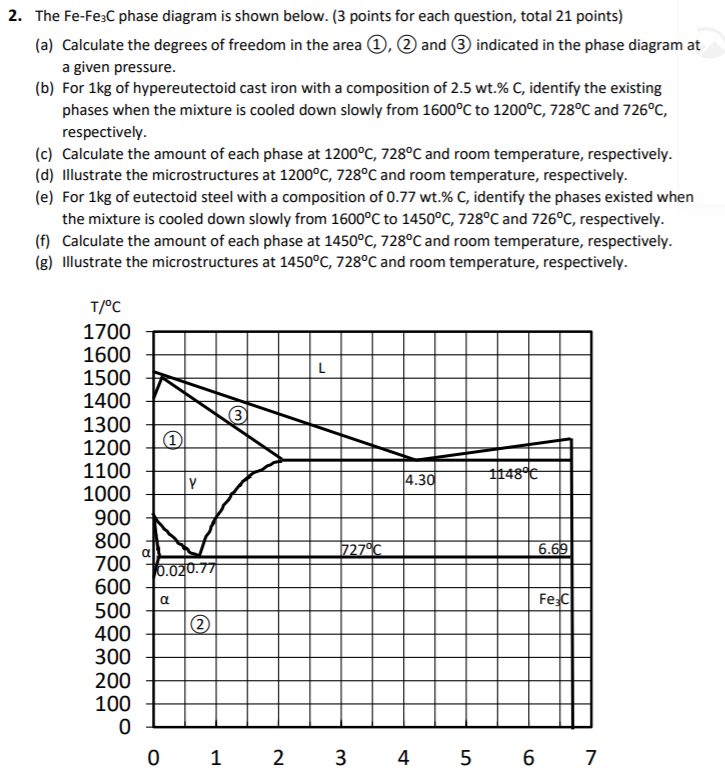

PDF The Iron Carbide (Fe Fe3C) Phase Diagram The Iron Carbide (Fe Fe3C) Phase Diagram The Iron ‐Iron Carbide (Fe‐Fe 3 C) Phase Diagram PeritecticL+ δ = γ at T=1493oC and 0.18wt%C Eutectic L = γ +Fe 3 C at T=1147oC and 4.3wt%C Eutectoid γ = α +Fe 3 C at T=727oC and 0.77wt%C Phases Present L Reactions Fe Fe3c Phase Diagram - schematron.org The Fe-C phase diagram is a fairly complex Phases in Fe-Fe. 3 . ( - ). Fraction of proeutectoid cementite: W. Fe3C. = V / (V+X) = (C. 1.Iron-Carbon Phase Diagram • In their simplest form, steels are alloys of Iron (Fe) and Carbon (C). • The Fe-C phase diagram is a fairly complex one, but we will only consider the steel and cast iron ... PDF The iron-iron carbide (Fe-Fe3C) phase diagram Review Fe-C phase diagram • 2 important points-Eutectoid (B): γ⇒α+Fe 3C-Eutectic (A): L ⇒γ+Fe 3C Fe 3 C (cementite) 1600 1400 1200 1000 800 600 400 0 12 3 4 5 66.7 L γ (austenite) γ+L γ+Fe 3C α+Fe 3C α + γ L+Fe 3C δ (Fe) C o, wt% C 1148°C T(°C) α 727°C = Teutectoid A R S 4.30 Result: Pearlite = alternating layers of αand Fe ... Solved: (a) Why is the Fe-Fe3C phase diagram a metastable ... ( b) Define the following phases that exist in the Fe-Fe 3 C phase diagram: ( i) austenite, ( ii) α ferrite, ( iii) cementite, ( iv) δ ferrite. ( c) Write the reactions for the three invariant reactions that take place in the Fe-Fe 3 C phase diagram. Step-by-step solution 100% (9 ratings) for this solution Step 1 of 4 a)

Teach Yourself Phase Diagrams

Iron-Carbon Phase Diagram Explained [with Graphs] The boundaries, intersecting each other, mark certain regions on the Fe3C diagram. Within each region, a different phase or two phases may exist together. At the boundary, the phase change occurs. These regions are the phase fields. They indicate the phases present for a certain composition and temperature of the alloy.

Draw Fe Fe3C diagram and explain Euctetoid, Eutectic and ...

PDF The iron-iron carbide (Fe-Fe3C) phase diagram 1 The iron-iron carbide (Fe-Fe3C) phase diagram Microstructures of iron α- ferrite austenite 2 Interstitial sites of FCC Interstitial sites of BCC 3 Microstructure in iron-carbon alloys REutectic-- pearlite Hypoeutectoid alloys 4 Hypereutectoid alloys Equilibrium diagrams having intermediate phases or compounds

Iron-Carbon Phase Diagram Explained [with Graphs]

Iron-Iron Carbide Phase Diagram | Material Engineering The Iron-Iron carbide (Fe-Fe 3 C) is defined by five individual phases and four invariant reactions. Five phases are- α-ferrite (BCC) Fe-C solid solution, γ-austenite (FCC) Fe-C solid solution, δ -ferrite (BCC) Fe-C solid solution, Fe 3 C (iron carbide) or cementite - an inter- metallic compound and liquid Fe-C solution.

PPT - The Iron–Carbon System PowerPoint Presentation, free ...

Calculation Of The Fe-fe3c Phase Equilibrium Diagram - ID ... Calculation Of The Fe-fe3c Phase Equilibrium Diagram In heat treatment processes of steel the very important role plays the Fe-Fe3C phase equilibrium diagram. It enables the selection of the temperature of austenitisation in respect to carbon content in steel as well as to predict the microstructure composition of annealed steel.

CHAPTER 6

PDF The C-Fe (Carbon-Iron) System In the present evaluation, the assessed stable Fe-C (graphite) and metastable Fe-Fe3C (cementite) equilibrium phase diagrams for 0 to 25 at.% C are based on thermodynamic calculations reported by [79Schl] and [84Oht].

The iron-iron carbide (Fe-Fe3C) phase diagram Microstructures ...

Critical Temperature Lines in Fe-Fe3C Phase Diagram ... Hello everyone in this video I will Discuss Critical Temperatures Lines in iron iron carbide equilibrium diagram also we will Discuss Significance of A0, A1,...

Principles of Heat Treating of Steels :: Total Materia Article

Iron-Carbon Diagram Explanation [PDF] - Mechanical E-Notes Iron-Carbon Phase Diagram with Detailed Explanation: If the percentage of the carbon is in the range of 0 to 2.11 % then it is called Steel and if the percentage of carbon is in the range of 2.11 to 6.67% then it is called Cast iron. As the carbon content increases, it produces more Iron-Carbide volume and that phase will exhibit high hardness.

File:Steel Fe-C phase diagram-en.png - Wikipedia

TTT diagram_Fe_Fe3C Phase diagram.docx - Time temperature ... View TTT diagram_Fe_Fe3C Phase diagram.docx from BMCG 3113 at Technical University of Malaysia, Melaka. Time temperature transformation (schematic) diagram for plain carbon eutectoid steel Iron-Iron

Muddiest Point- Phase Diagrams V: Fe-Fe3C Microstructures

Fe Fe3c Diagram - singh iron carbon diagram, iron carbon ... Fe Fe3c Diagram. Here are a number of highest rated Fe Fe3c Diagram pictures on internet. We identified it from honorable source. Its submitted by organization in the best field. We recognize this kind of Fe Fe3c Diagram graphic could possibly be the most trending topic later we share it in google pro or facebook.

15. From the iron-carbon phase diagram (see Figure below) a ...

Fe Fe3c Phase Diagram The Fe-Fe 3 C phase diagram for magnetic fields up to 18 T is presented in Fig. 9. The solid lines and curves in this figure are visual guides only. The broken line represents the A Cm line derived from reported data. The transition temperatures obtained in zero fields were in good agreement with the Fe-Fe 3 C phase diagram reported by Okamoto.

The Iron Carbide (Fe Fe3C) Phase Diagram - · PDF ...

Fe-C diagram - SlideShare Phase Mixtures Observed in Fe-C Diagram • 1. Pearlite The pearlite consists of alternate layers of ferrite and cementite. It has properties somewhere between ferrite and cementite. The average carbon content in pearlite is 0.76% • 2. Ledeburite Ledeburite is an eutetcic mixture of austenite and cementite in the form of alternate layers.

Phase Diagrams:

PDF APPLICATIONS OF Fe-C PHASE DIAGRAM PHASE TRANSFORMATION Liquid to Austenite •Eutectic transformation-1148C, •C-2.11%-4.3% •Eutectic transformation-4.3% C, 1148C •Eutectic transformation L-γ+F
