In my diagram, I've shown a half-bathroom upstream from the washing machine. Imagine what happens when that toilet is flushed! The rushing water fills the pipe completely and pushes the air in the pipe ahead of it towards the sewer. That air MUST BE REPLACED and as the water goes past wye fittings, it creates a vacuum at that point. Note: This pipe connects our washing machine and kitchen sink. If we do nothing, the sink is next. Problem is, the jetter may or may not work. If it does not work, we will have to run new piping. The plumber suggested just have it run into the yard since it is just the washing machine and kitchen sink, not the toilet.

When installing your vents, it’s highly recommended that you plan out your drain lines to minimize the risk of clogging. Both kitchen (1-1/2 inches) and bathroom (1-1/4 inches) are smaller than the rest of the drain system on purpose. They lead into larger branch drain pipes, which lead into the 4-inch stack.

Washing machine drain vent diagram

The correct way to drain a washing machine is to install a standpipe. That is a vertical length of pipe that connects to a P-trap that, in turn, connects to the drain. The top of the standpipe must extend above the overflow level of the washing machine, and it must be properly vented. Fitting easily inside a laundry box, a small AAV is a good choice for venting a washing machine. How To Vent A Washing Machine Drain Pipe? Here are the steps you can follow to finally vent your washing machine drain pipe. You’ll have to put a good amount of focus. So, here goes: Step 1 of 7: Measure the Differences. Start off by preparing for the job. Take proper measurements of everything and make sure you know what to get. Plumbing A Washing Machine Drain Diagrams. Aug 24, Unusual Washing Machine Drain Hose Hook-up - Plumbing - DIY washing machine diagram Bathroom Plumbing, Laundry Room Bathroom. 2-inch pipe for washing machine drain; Standpipe 24 inches above p-trap; Branch arm to vertical stack; Relax, I'm a master plumber; CLICK HERE to Get Tim's. When hooking up a new washing machine, some people look for a convenient drain line and simply install a pipe that extends to the washer.

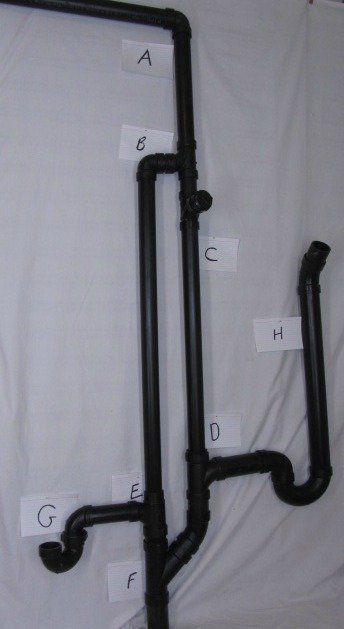

Washing machine drain vent diagram. 3. Vent could be 1 1/2 or 2 inch pipe and it needs to be 6 inches above the stand pipe flood level. 4. Sanitary tee could be all 2 inch or 2x2x1 1/2. 5. Pipe below the tee to drain needs to be 2 inch. 6. Air admittance valve or In line vent valve goes on the end of the vent pipe. All the pipe below the bathroom floor drain is 1 1/2 inch PVC ... The basement washing machine and utility sink wet vent into a 1-1/2" riser that goes thru the concrete slab, w/ an air admittance valve. I am stuck with that situation (these were installed by a plumber for the previous owner.) Dec 03, 2020 · How far below drain should P trap be? As with all plumbing fixtures and appliances, a washing machine drain pipe must also contain a P – trap . Position the trap between 6 and 18 inches above the floor, with a standpipe of 18 to 30 inches above that. You might be interested: Pvc glue for pool plumbing. In each A is the vent, B is the trap arm, and C is the drain. You only have to remember this, the sanitary tee that serves each fixture is the place where the trap arm, drain, and vent come together. The trap arm, (the horizontal pipe down stream of the p-trap) always flows into a sanitary tee. The fixture's drain and vent each begin at its sanitary tee. So, it is not a drain till it is down stream of the sanitary tee.

washing machine diagram Laundry Room Design, Laundry In Bathroom, Laundry. Laundry Room Plumbing Routes Install the drain and vent Laundry Room Sink, washing machine diagram Laundry Room Design, Laundry In Bathroom.The under-counter Whirlpool ice machine is a stand-alone $ appliance which makes gourmet clear ice such as for a wet bar. Plumbing A Washing Machine Drain Diagrams. Aug 24, Unusual Washing Machine Drain Hose Hook-up - Plumbing - DIY washing machine diagram Bathroom Plumbing, Laundry Room Bathroom. 2-inch pipe for washing machine drain; Standpipe 24 inches above p-trap; Branch arm to vertical stack; Relax, I'm a master plumber; CLICK HERE to Get Tim's. When hooking up a new washing machine, some people look for a convenient drain line and simply install a pipe that extends to the washer. How To Vent A Washing Machine Drain Pipe? Here are the steps you can follow to finally vent your washing machine drain pipe. You’ll have to put a good amount of focus. So, here goes: Step 1 of 7: Measure the Differences. Start off by preparing for the job. Take proper measurements of everything and make sure you know what to get. The correct way to drain a washing machine is to install a standpipe. That is a vertical length of pipe that connects to a P-trap that, in turn, connects to the drain. The top of the standpipe must extend above the overflow level of the washing machine, and it must be properly vented. Fitting easily inside a laundry box, a small AAV is a good choice for venting a washing machine.
