August 3, 2016 - Rough in plumbing is, as its name suggests, basically a "rough draft" of your plumbing installation. The point is to get a diagram of your plumbing skeleton in place, a static and unchanging framework upon which you'll complete your plumbing installation. This is beneficial because, once your ... What does roughed in plumbing look like? Types of Rough -In A plumbing rough -in means that all water supply and drain pipes have been run through bored holes in the studs and other framing members and that all pipe connections have been made. But no sinks, faucets, or other fixtures and end elements are yet installed at this phase.

Free Rough-In Checklist: http://www.hammerpedia.com/ric2Learn how to rough-in a toilet along with the important measurements you need to know.

Rough in plumbing diagram

Common rough-in dimensions for plumbing fixtures 2 Easy-To-Understand Bathroom Drain. Bathroom Plumbing Diagram For Rough In. The ideal slope for a drain is 14 inch for each foot long. The plumbing permit fee is 1627 for the rough-in and installation of each fixture outlet. WATCH plumbing vent video below. Article by Jose Duran. Click Below for a Printable Copy of the Residential Rough In Plumbing Inspection Checklist ... On AskThe Builder.com you will find an excellent article on how to create your own plumbing diagram. Or, if you want, they will create one for you. Below is a sample of their work. Plumbing - Rough In | Yelp. This plumbing project may seem intimidating, but it's actually an easy DIY project that can be done. I am surprised it is so hard to find a diagram or description of the proper way to rough in a bathtub spout. The plumbing system in your home is composed of two separate subsystems.

Rough in plumbing diagram. How To Rough-In Plumbing. When learning how to rough-in plumbing, there are a few steps to take before installing new plumbing pipes or fixtures: Check the specs of the new fixtures, preferably before you purchase them. Make sure they will fit in your kitchen or bathroom. Figure out where the new fixtures will go. See more ideas about plumbing, diy plumbing, bathroom plumbing. ... Image result for Toilet Installation Diagram Pex Plumbing, Plumbing Drains, ... Basement bath rough in diagram ... Steps On How To Do Toilet Plumbing Right - Plumbing Tips ... Plumbing Vent Diagram: How to Properly Vent Your Pipes. Sep 24, 2015 - AsktheBuilder.com: A rough-in plumbing diagram is a sketch for all the plumbing pipes, pipe fittings, drains and vent piping. This plumbing diagram might be required for a building permit. This isometric diagram will help determine if all your plumbing meets code.

Step 1: Map Rough-In Plumbing Layout. Make a map of your rough-in plumbing layout for the bathroom. Locate the nearest main drain stack and chart the path the pipes will need to take to reach the bathroom, as well as the locations where they will reside once there. Factor in the location of your toilet, sink and shower or bathtub. Summing It Up. On average, the rough-in height for sink drains is 20" above the floor. Of course, the height can vary based on the sink size and the cabinet space in the vanity beneath the fixture. It is quite critical that you get your sink drain rough in correct as it is a part of the plumbing inspection process during building and renovation. Rough-In Dimension Terminology . When speaking of plumbing dimensions, the term centerline is often used.As with the term "on-center," which is used for construction, the term "centerline" is an imaginary vertical line drawn through a key reference point (usually the drain pipe). Basic Plumbing Diagram Indicates hot water flowing to the fixtures Indicates cold water flowing to the fixtures *Each fixture requires a trap to prevent sewer/septic gases from entering the home All fixtures drain by gravity to a common point, either to a septic system or a sewer. Vent stacks allow sewer/septic gases to escape and provide

December 29, 2018 - Rough-in Shower Plumbing Specs. The rough-in specifications have to do with the placement and sizes of the plumbing pipes, fixtures and faucets that are installed first; these are the plumbing parts that get covered up and you normally can’t see after completion. A rough-in plumbing diagram should be drawn first before you start constructing your underground plumbing system. The said diagram includes all the pipes and lines which must be connected as well as the materials to be used during the process. You should always stick to the plan if you want your water and drainage lines to flow properly. Basement bath rough in diagram ... Steps On How To Do Toilet Plumbing Right - Plumbing Tips ... Plumbing Vent Diagram: How to Properly Vent Your Pipes. Rough in plumbing is, as its name suggests, basically a "rough draft" of your plumbing installation. The point is to get a diagram of your plumbing skeleton in place, a static and unchanging framework upon which you'll complete your plumbing installation. This is beneficial because, once your ...

Help Identifying Basement Rough In Doityourself Com Community Forums

Basement Bathroom Layout Bigger Than The Three Of Us. Basement Bathroom Design Ideas 3 Things I Wish D Done Diffely. 25 Basement Remodeling Ideas Inspiration Bathroom Plumbing Diagram. Basement Bathroom Rough In. Help With Basement Rough In Pics Included.

Toilet Rough In Guide Plumber Explain The Home Hacks Diy

Oct 25, 2020 - When you're choosing a shower, it's important to pick one that's compatible with your home's plumbing system, and they've put together in different ways

How To Design A Plumbing System In A Building

Common Plumbing Diagram for a House on a Slab Foundation. Plumbing rough-in slab diagrams can indicate a relatively simple or complex layout for the plumbing under your home. Your home's floor plan can identify where your plumbing lies and help a licensed plumber locate and isolate under slab leaks.

1

Useful Plumbing Vent Diagrams. To help you better visualize what these piping systems look like, we thought it might help to incorporate a plumbing vent diagram. The image below illustrates s typical bathroom with multiple plumbing vents. There's even a wet vent included that connects to the bathtub.

25 Basement Remodeling Ideas Inspiration Basement Toilet Plumbing How To Rough In

Especially since rough in plumbing is just a stepping stone to the larger plumbing installation. Step 1 - Find and Mark Your Key Locations. Determine where the toilet is going to be positioned and mark its center on the wall. Measure 13 1/2 inches outward from that center point, and then, on the floor, make another mark at this distance.

Plumbing Rough In Dimensions Bathroom Plumbing Rough In Basement Bath Rough In Diagram Bathtu Bathroom Plumbing Shower Plumbing Plumbing Diagram

January 12, 2021 - View Diagrams of Bathtub Plumbing Installation and Bathtub Drain Installation. Find Names of Bathtub Drain Parts. Bathtub Drain Schematics & Bathtub Plumbing Diagram…

Plumbingmarart

October 23, 2020 - A 1-1/2-inch drain trap is often permitted for a shower, but a 2-inch trap will ensure quick flow of water and will be less likely to clog. A shower has no waste-and-overflow assembly, so the rough plumbing consists of a cemented trap that rises to the correct height for the shower base.

3

Plumbing Diagram Basement Bathroom. On December 21, 2020 By Amik. 9 basement bathroom ideas basement bathroom rough in diy home home plumbing diagram out of this basement bathroom vent and drain more sewer fun twinsprings research.

Internet E Government Indonesia

Kitchen Sink Plumbing Diagram. 7272016 How to install the plumbing underneath your kitchen sink.Rough In Measurements. This is the piece that attaches to your kitchen faucet or faucet lever. 1082018 The 35 Parts Of A Kitchen Sink Detailed Diagram.

Trap Arm Learn About Dirty Arms With This Plumbing Diagram

Official site of the Parkland County, with information for residents, visitors, and businesses about recreation, tourism, community, government, and more!

How To Finish A Roughed In Basement Bathroom

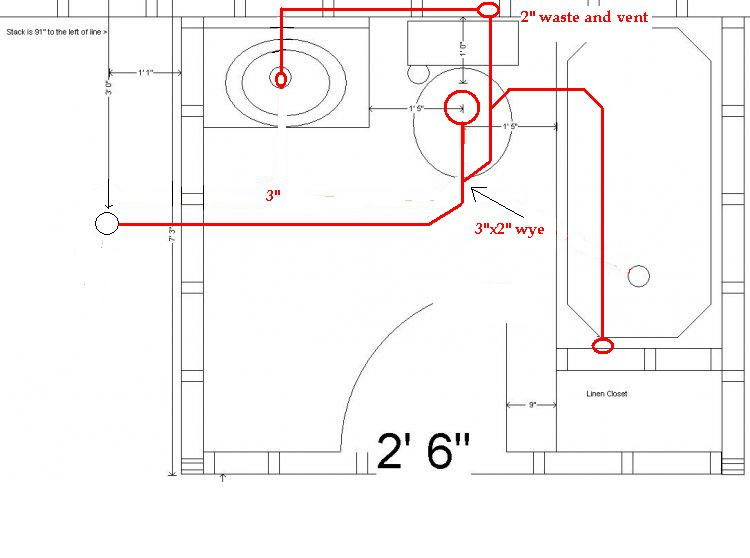

June 21, 2017 - This picture is pretty close to how my new basement bathroom layout will be. Does it look correct? Only difference is my incoming vent is 1 1/2 in....
