Syncline and Anticline. C 1992 West Publishing Company . This diagram depicts an adjacent ANTICLINE and SYNCLINE with their representative FOLD AXIS and AXIAL PLANES. ... Notice the V-shape of the outcrop pattern. This ANTICLINE is plunging toward the top of the picture, therefore, it is a PLUNGING ANTICLINE! ... Figure 5: Schematic diagrams illustrating a dome and a basin. vital information by which to recognize more complex fold structures on geological maps. Refer to Table 5.3 for additional fold symbols. 1.3 Folds on Block Diagrams Figure 6 shows a schematic diagram of an anticline with key components labeled. First,

Block diagram of plunging syncline. #geologic_structure #Geology #structural_geology #syncline We have converted your account to an Organization! You can now invite others to collaborate on your content.

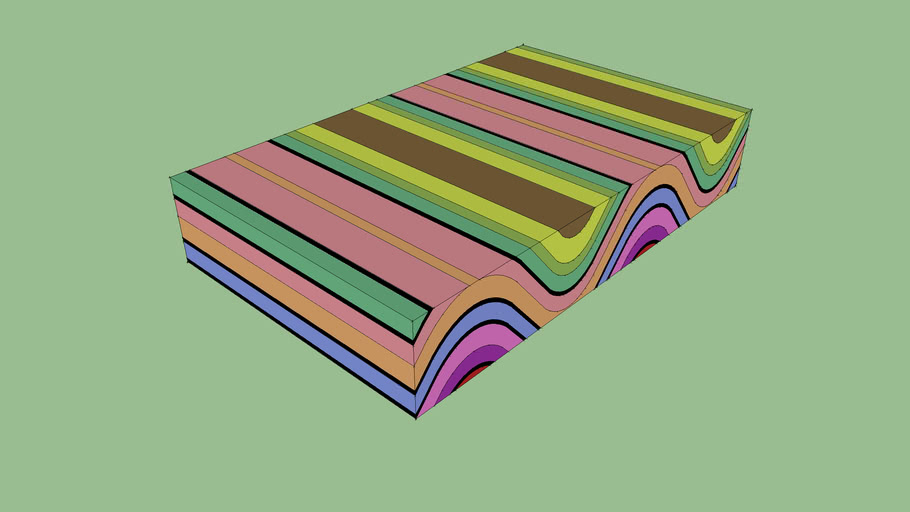

Plunging syncline block diagram

Plunging Syncline Block Diagram The three broad classes of folds are (1) anticlines, (2) synclines and (3) Figure 4: Schematic diagrams illustrating horizontal and plunging anticlines. stream cut. A block diagram is a Block Diagrams & Nomenclature Plunging synclines plunge in the direction the "V" opens. • Non‐plunging folds have straight contact lines in the map view (horizontal) surface. • Vertical sides of the block diagram perpendicular to the axial traces of folds may contain curved contact lines. Axial traces of folds Anticline symbol Syncline symbol Students make sketches of block diagrams of structures of your choosing. These could include horizontal stratigraphy and an upright anticline, or could be of new structures, such as an upright syncline, asymmetrical folds, or anything else you like. We recommend building up gradually from simple structures to more complex ones.

Plunging syncline block diagram. A block diagram is a combination of those two representations and ... structure is called a syncline. Note that the youngest rocks are in the center. Can you ... Plunging Fold Structures Often folds can also be tilted. This results in fold with a nonhorizontal, inclined 1. Upright fold: Fold layers into an upright, vertical anticline. Slice the top to make it flat topography; slice through the sides with vertical planes to create a block model. Orient your model so that the hinge line trends E-W; vertical axial plane strikes E-W. Sketch the block diagram. Diagram B: anticline Diagram F: plunging anticline Diagram C: oblique slip fault Diagram G: basin Diagram D: plunging syncline Diagram H: syncline. ... Based on the inf ormatio n in this and previous lab s, match the block diagr ams below to . the name of the st ructure. Diagr am A: rev er se f ault Diagr am E: left la ter al str ik e slip. f ault. Plunging and non-plunging anticlines and synclines can be represented in 3D block diagrams to show how the folded strata behave beneath the surface. Domes - a circular anticline (oldest beds in the core, beds dip away from the core). Basins - a circular syncline (youngest beds in the core, beds dip into the core).

In block diagrams like those shown below, the top of the block is the horizontal surface of the earth, the map view. ... A plunging anticline or a plunging syncline is one that has its axis tilted from the horizontal so that the fold is plunging into the earth along its length. Plunge direction is the direction in which the axis of the fold ... The block in part (a) of the figure on p. 386 shows a vertical fault cutting across a nonplunging syncline. Complete the block diagram by adding arrows to show the sense of slip across the fault and by adding colored bands for the appropriate stratigraphic units in the blank areas. Block diagram B Answer 1Choose...symmetrical plunging anticlineasymmetrical plunging synclinesymmetrical plunging synclineasymmetrical plunging anticlinesymmetrical non-plunging syncline Block Question : Question 1 Not yet answered Marked out of 4 Flag question Question text Matching the block diagrams with its type of fold. maps, cross-sectional diagrams, block diagrams, aerial photographs, and satellite images, as appropriate: • Normal, reverse, and lateral faults • Synclines and anticlines, both non-plunging and plunging • The axis of a fold. State the direction of plunge where relevant. Draw block diagrams to illustrate geological structures.

upwards the structure is an anticline and when the strata are bent downwards the structure is a syncline (Fig. 5). Note that in an anticline the oldest rocks are in the center of the fold while in a syncline the ... The symbols for plunging fold axes are shown below. The direction of plunge is indicated by an arrow. ... On the block diagram ... Use concrete-block rather than wood-frame construction. ... On the diagram shown a. block X is the footwall. b. block X is the hanging wall. c. the displacement of layer B shows this is a thrust fault. ... d. a syncline plunging toward the south. c. an anticline plunging toward the north. A plunging anticline or a plunging syncline is one that has its axis tilted from the horizontal so that the fold is plunging into the earth along its length. Plunge direction is the direction in which the axis of the fold tilts down into the earth. In map view, a plunging anticline makes a U-shaped or V-shaped pattern that points, or closes, in the direction of plunge. C. plunging anticline, direction of plunge to the bottom of the page D. plunging syncline, direction of plunge to the bottom of the page CORRECT Question 11 of 25 4.0/ 4.0 Points 12.8, Part C, page 306, Finish diagram on page 312. .
